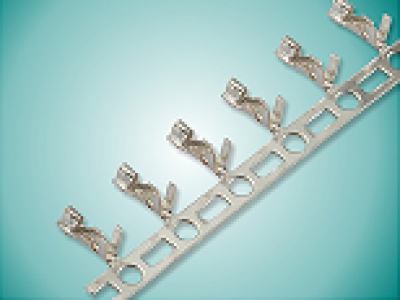

1124H、1124T 2.00mm Pitch Housing & Crimp Terminal

2.00mm间距
连接器壳、连接器端子

  1. 基本信息
  2. 产品参数
  3. 文件下载

2.00mm间距

连接器壳、连接器端子

型号示例  壳:1124H-02P、端子:1124T

壳芯数:02P-16P

配套产品:1124S,1124R


材料 MATERIAL

绝缘Insulator:Nylon 66 UL94V-0

端子Terminal:Phosphor Bronze

接触镀层Contact Plated:Tin-plated


技术参数 SPECIFICATIONS

额定电压Voltage Rating: 125V AC/DC

额定电流Current Rating:1A,2A(24#)

耐压Withstanding Voltage:800V AC/minute

接触电阻Contact Resistance:≤20mΩ

绝缘电阻Insulation Resistance:≥1000MΩ

工作温度Operating Temperature:-25°C to +85°C
